E-Scooter Charger

  • Wide Input AC Voltage Range 170V-300V.

  • High efficiency, less power consumption.

  • Accurate Battery Charging Current Limit.

  • Overload protection

  • Battery reverse polarity protection using fuse.

  • Specially designed to meet Indian power condition.

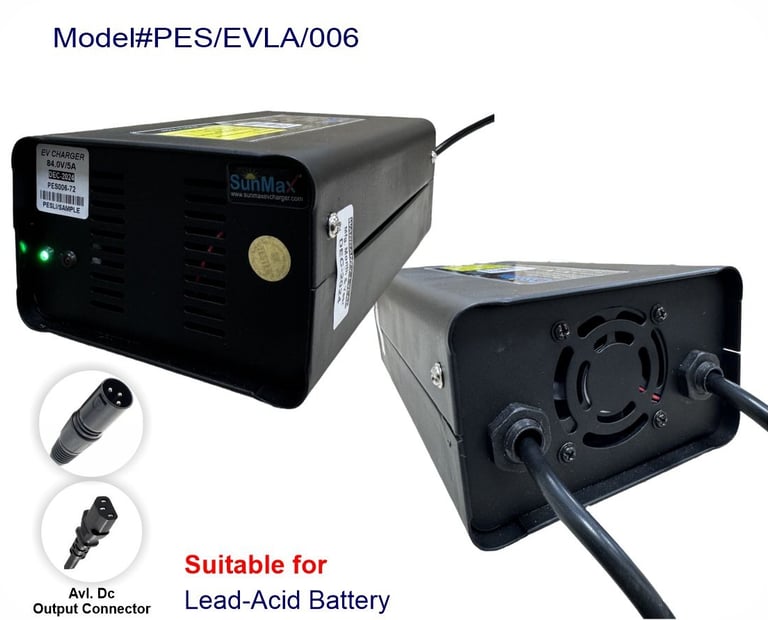

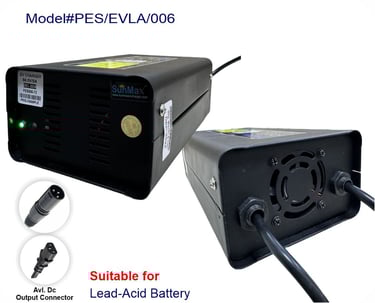

Lead Acid Battery Charger

Salient Features

  • Ac Voltage : 180-320 VAC~

  • Output over Protection : Yes

  • Auto Cut Mode : Yes

  • Visual LED Indication : 2 Led (Red-Charging, Green- No Load or Charging Complete)

  • Charging Mode : CC-CV

  • Outer Body Material : Sheet metal Powder

  • coated Dimensions : L=150mm, W=100mm, H=70mm

  • Weight : 1.2Kg

Specifications

Available Models

48V 3A

60V 3A

Model#PES005/EVLA

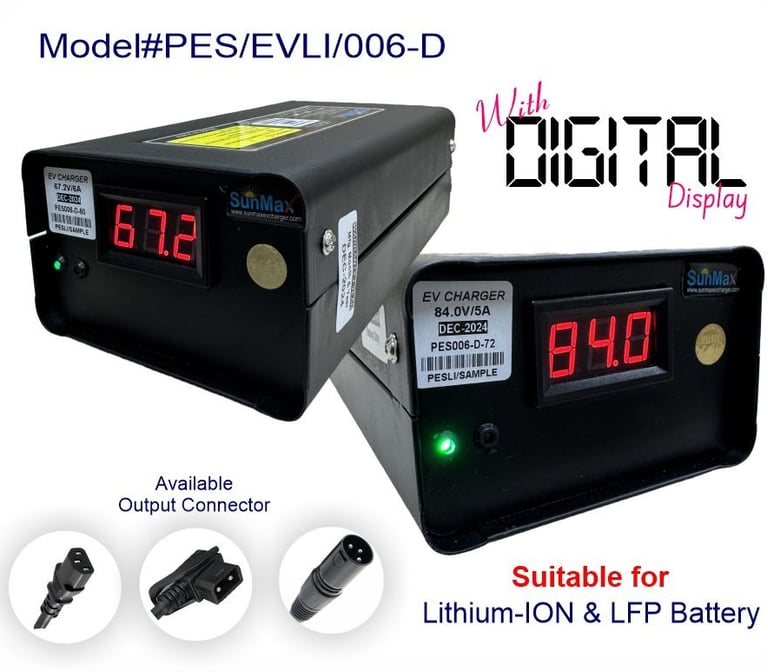

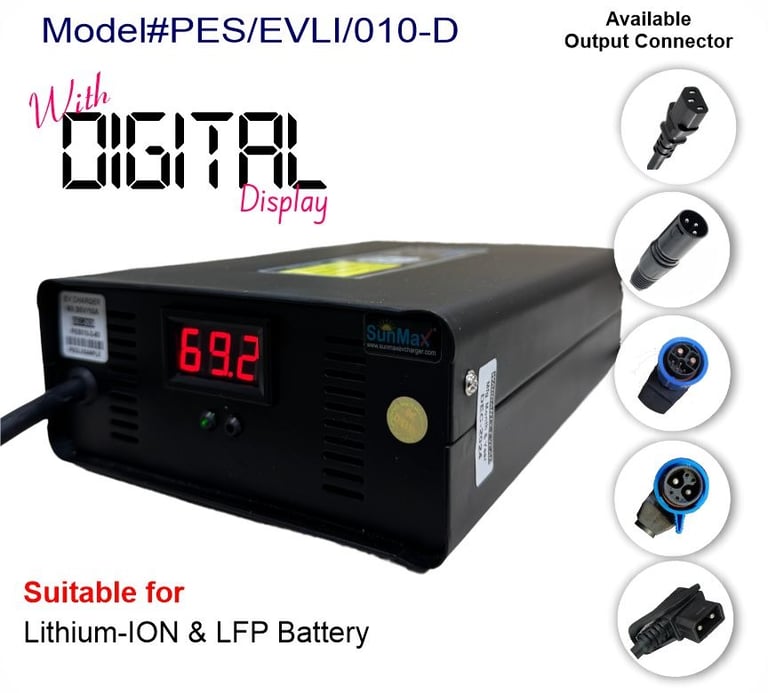

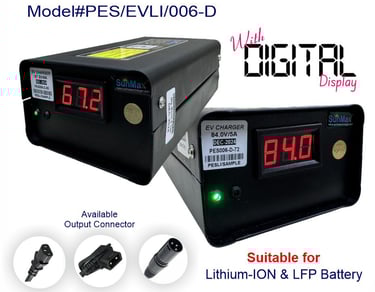

Lithium Battery Charger

Salient Features

Model#PES006/EVLI/D

  • Wide Input AC Voltage Range 170V-300V.

  • High efficiency, less power consumption.

  • Accurate Battery Charging Current Limit.

  • Overload protection

  • Battery reverse polarity protection using fuse.

  • Specially designed to meet Indian power condition.

  • CC-CV Charging mode.

  • Zero voltage start-up available.

  • Big Size Digital Display.

Specifications

  • Ac Voltage : 180-320 VAC~

  • Output over Protection : Yes

  • Auto Cut Mode : Yes

  • Visual LED Indication : 2 Led(Red-Charging, Green-No Load or Charging Complete)

  • Charging Mode : CC-CV

  • Outer Body Material : Sheet metal Powder coated

  • Dimensions : L=190mm, W=112mm,H=70mm

  • Weight : 1.5Kg

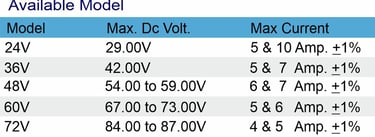

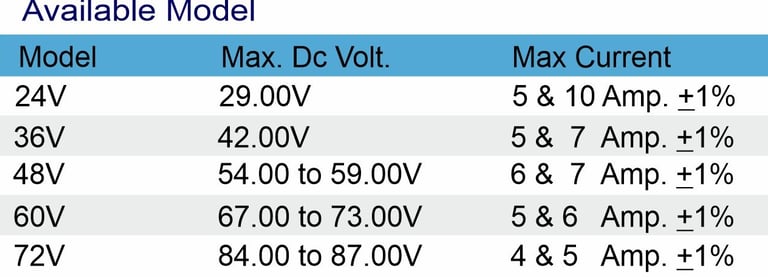

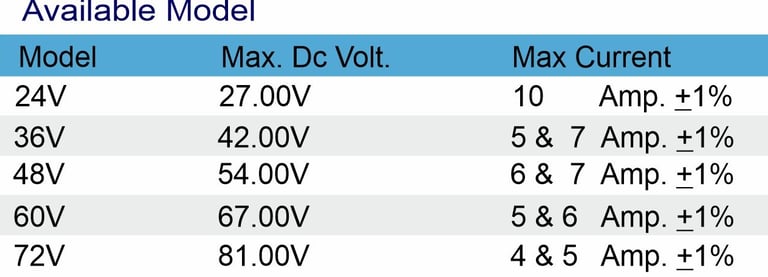

Available Model

24V 5A

36V 5A

24V 10A

48V 6A

60V 5A

72V 4A

(Maximum DC Output Voltage as per customer requirement)

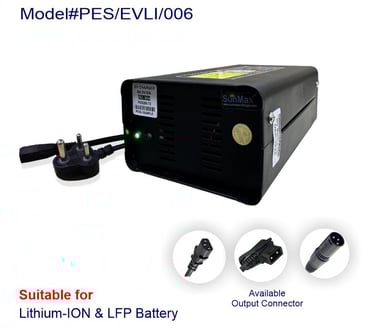

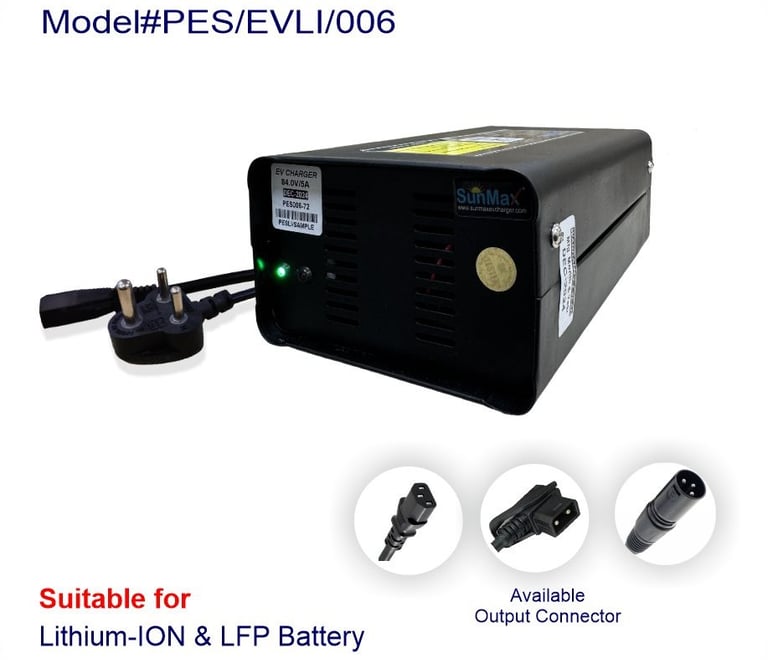

Lithium Battery Charger

Model#PES006/EVLI

Salient Features

  • Wide Input AC Voltage Range 170V-300V.

  • High efficiency, less power consumption.

  • Accurate Battery Charging Current Limit.

  • Overload protection

  • Battery reverse polarity protection using fuse.

  • Specially designed to meet Indian power condition.

  • CC-CV Charging mode.

  • Zero voltage start-up available.

Specifications

  • Ac Voltage : 180-320 VAC~

  • Output over Protection : Yes

  • Auto Cut Mode : Yes

  • Visual LED Indication : 2 Led (Red-Charging, Green-No Load or Charging Complete)

  • Charging Mode : CC-CV

  • Outer Body Material : Sheet metal Powder

  • coated Dimensions : L=190mm, W=112mm, H=70mm

  • Weight : 1.5Kg

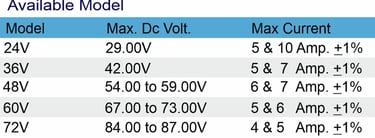

Available Model

24V 5A

36V 5A

48V 6A

60V 5A

72V 4A

(Maximum DC Output Voltage as per customer requirement)
