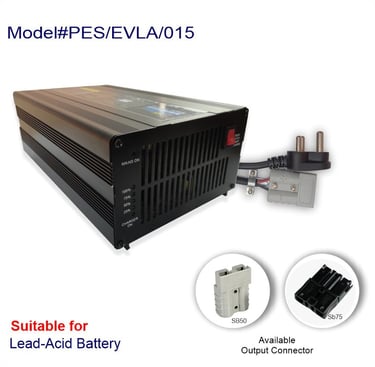

Lead Acid Battery Charger

Model#PES015/EVLA

Salient Features

  • Wide Input AC Voltage Range 170V-300V.

  • High efficiency, less power consumption.

  • Accurate Battery Charging Current Limit.

  • Overload protection

  • Battery reverse polarity protection .

  • Specially designed to meet Indian power condition.

  • CC-CV Boost, Float and Trickle Charging mode.

  • Zero voltage start-up available.

  • With Microcontroller .

  • Over temperature shutdown with auto recovery

Specifications

  • Ac Voltage : 180-320 VAC~

  • Output over Protection : Yes

  • Auto Cut Mode : Yes

  • Visual LED Indication : 4 Led Bar Graph

  • Charging Mode : CC-CV

  • Outer enclosure Material : Aluminum

  • Dimensions : L=245mm, W=150mm, H=90mm

  • Weight : 3.5Kg

  • Max Dc Output Voltage For 48V : 65V

  • Max Dc Output Voltage For 60V : 82V

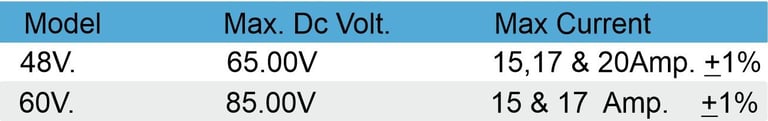

Available Model

48V 15A

48V 17A

60V 15A

60V 12A

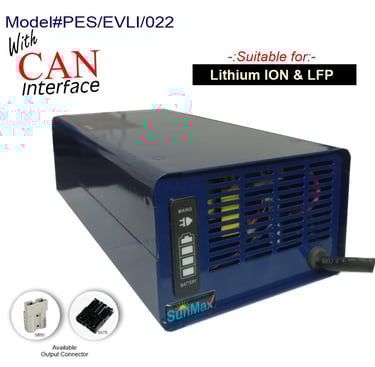

LITHIUM Battery Charger

Model#PES035/EVLI

Salient Features

  • Wide Input AC Voltage Range 170V-300V.

  • High efficiency, less power consumption.

  • Accurate Battery Charging Current Limit.

  • Overload protection

  • Battery reverse polarity protection .

  • Specially designed to meet Indian power condition.

  • CC-CV Boost, Float and Trickle Charging mode.

  • Zero voltage start-up available.

  • With Microcontroller .

  • Over temperature shutdown with auto recovery

Specifications

  • Ac Voltage : 180-320 VAC~

  • Output over Protection : Yes

  • Auto Cut Mode : Yes

  • Visual LED Indication : 4 Led Bar Graph

  • Charging Mode : CC-CV

  • Enclosure Material : Sheet Metal Powder coated

  • Dimensions : L=245mm, W=150mm, H=170mm

  • Weight : 6.5Kg

Available Model

48V35A

48V30A

60V25A

72V20A

(Maximum DC Output Voltage as per customer requirement)
